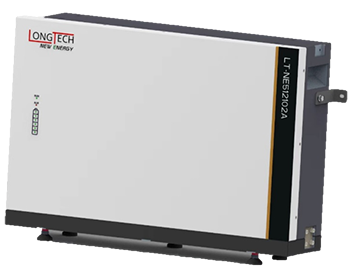

家庭储能系统

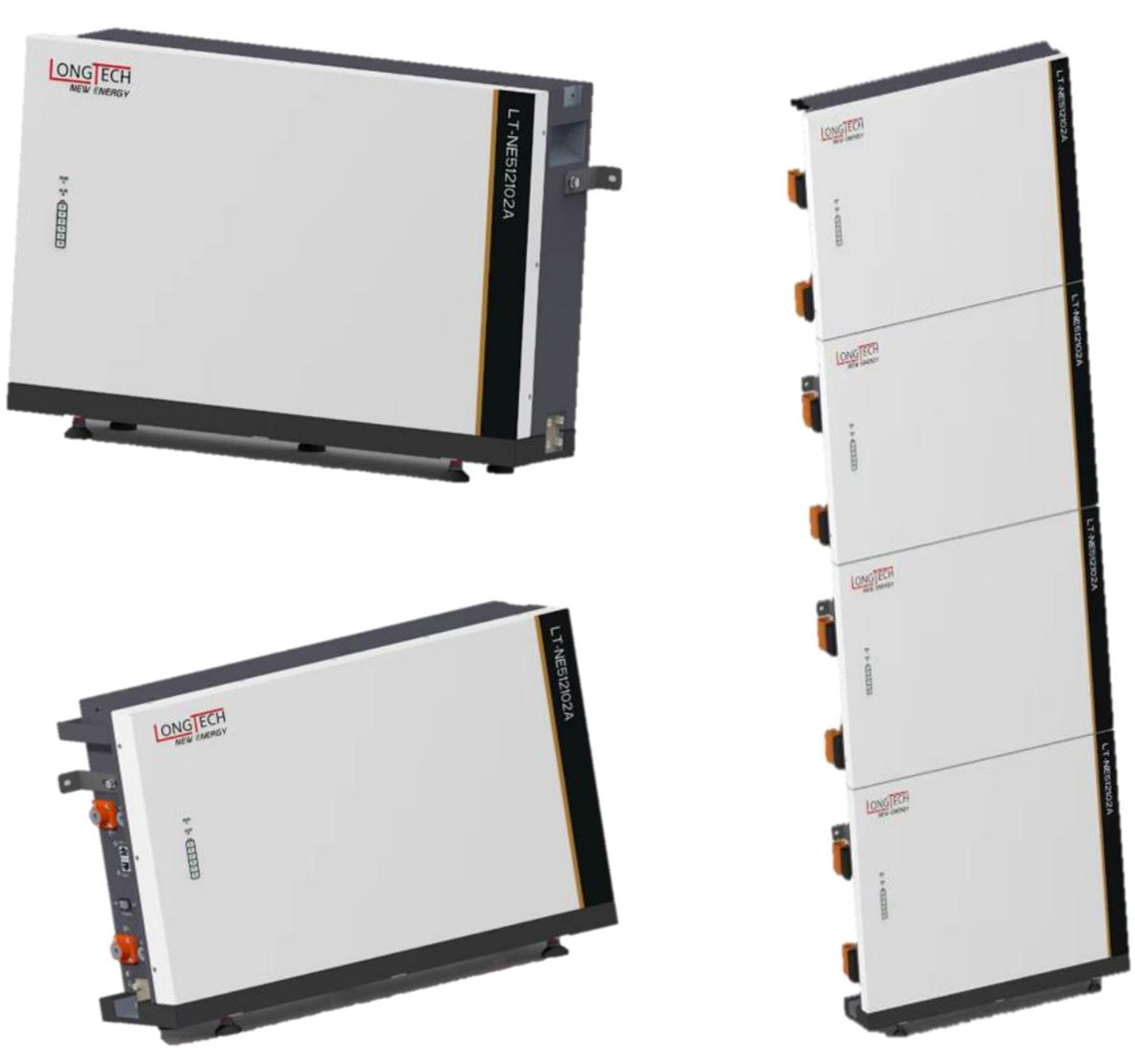

LT-NE512102A
Safe & Reliable：Premium Lithium Iron Phosphate Cell
High Energy Density：Proprietary CTP Technology
Flexible Investment：Scalable from 5.12 to 76.8 kWh
Easy Installation：Ground mounted or Wall mounted
Perfect Compatibility：Compatible with Major PCS Brand
Performance 机能 | ||||
Nominal Voltage 尺度电压 | 51.2 Vdc | |||
Nominal Capacity 尺度容量 | 100 Ah | 200 Ah | 300 Ah | 400 Ah |
Battery Energy 电池容量 | 5.12 kWh | 10.24 kWh | 15.36 kWh | 20.48 kWh |
Charge Voltage 充电电压 |
55.68-56.16 Vdc | |||
Discharge Voltage 放电电压 | 45.6-56.16 Vdc | |||
Nominal Charge / Discharge Current 尺度充放电电流 |
50 A |
100 A |
100A |
100 A |
Nominal Charge / Discharge Power 尺度充放电功率 | 2500 W | 5000 W | 5000 W | 5000 W |
Max Charge / Discharge Current 最大充放电电流 | 100A | 100 A | 100A | 100 A |
Max Charge / Discharge Power 最大充放电功率 | 5000 W | 5000 W | 5000 W | 5000 W |
Short circuit current 短路电流 | 350 A | |||
Communication 通讯 | |
Display 显示 | SOC status indicator, LED indicator 电量批示灯，状态 LED 批示灯 |
Communication 通讯 | RS232,RS485,CAN |
General Specification 通惯例格 | ||||
Dimension( WxD><H mm) 尺寸（毫米） |
620 x150 x435mm |
620 x150 x816mm |
620x150 x1197mm |
620 x150 x1578mm |
Weight (Kg) 沉量 |
45kg |
87.5kg |
130kg |
172.5kg |
Installation 装置方式 | Ground mounted or wall mounted 地面装置或挂壁装置 | |||
Working Temperature 工作温度 |
0 C - 55 C | |||
Storage Temperature 贮存温度 |
>25 °C12 months （月） ; ?35 °C,6 months;《45 °C,3 months | |||
Operating / Storage / humidity 运行/贮存湿度 | M95% RH （相对湿度） | |||
Max Operating Altitude 最大海拔高度 |
<2000m （米） | |||
IP Rating 防护等级 | IP20 | |||
Cell Technology 电池科技 | LiFePO4,Lithium Iron Phosphate 磷酸铁锂 | |||
Cycle life 循环寿命 | 3000 Cycles （循环） @ 80% DOD / 25 °C/ 0.5C, 60% EOL | |||
Scalability 可扩大性 | Max 15 batteries in parallel （支持 15 台并机） | |||
Ordering and Deliverable Part | ||||
Product ordering part 产品订购部门 | LT- NE512102A Battery LT- NE512102A Base + Power Cable LT- NE512102A Parallel Cable | |||
